Why does the LML Duramax need a lift pump at Stage 2 power?

The LML Duramax runs a CP4.2 injection pump that is vulnerable to aeration and inadequate inlet pressure. A Stage 2 tune increases fuel demand at the CP4 inlet. The FASS 150 lift pump maintains consistent positive inlet pressure before the tune goes in — the cost of a lift pump is a fraction of a CP4 failure and injection system replacement.

What is the EFI Live DSP5 switch used on LML Duramax builds?

EFI Live stores up to five calibration profiles simultaneously. The DSP5 switch is a 5-position rotary dial mounted in the cab allowing profile selection without a laptop. This truck uses position 1 for daily street driving, position 2 for towing, and position 3 for highway economy. Both ECM and TCM load the selected profile.

Is Stage 2 Duramax enough for occasional towing use?

Yes, with a proper tow calibration. A Stage 2 LML producing 460-500 rwhp and 840-880 lb-ft handles boat trailer towing well. The tow profile runs a conservative EGT ceiling and smooth converter lockup. The same FASS lift pump that protects the CP4 on the street tune also provides fuel security on towing pulls.

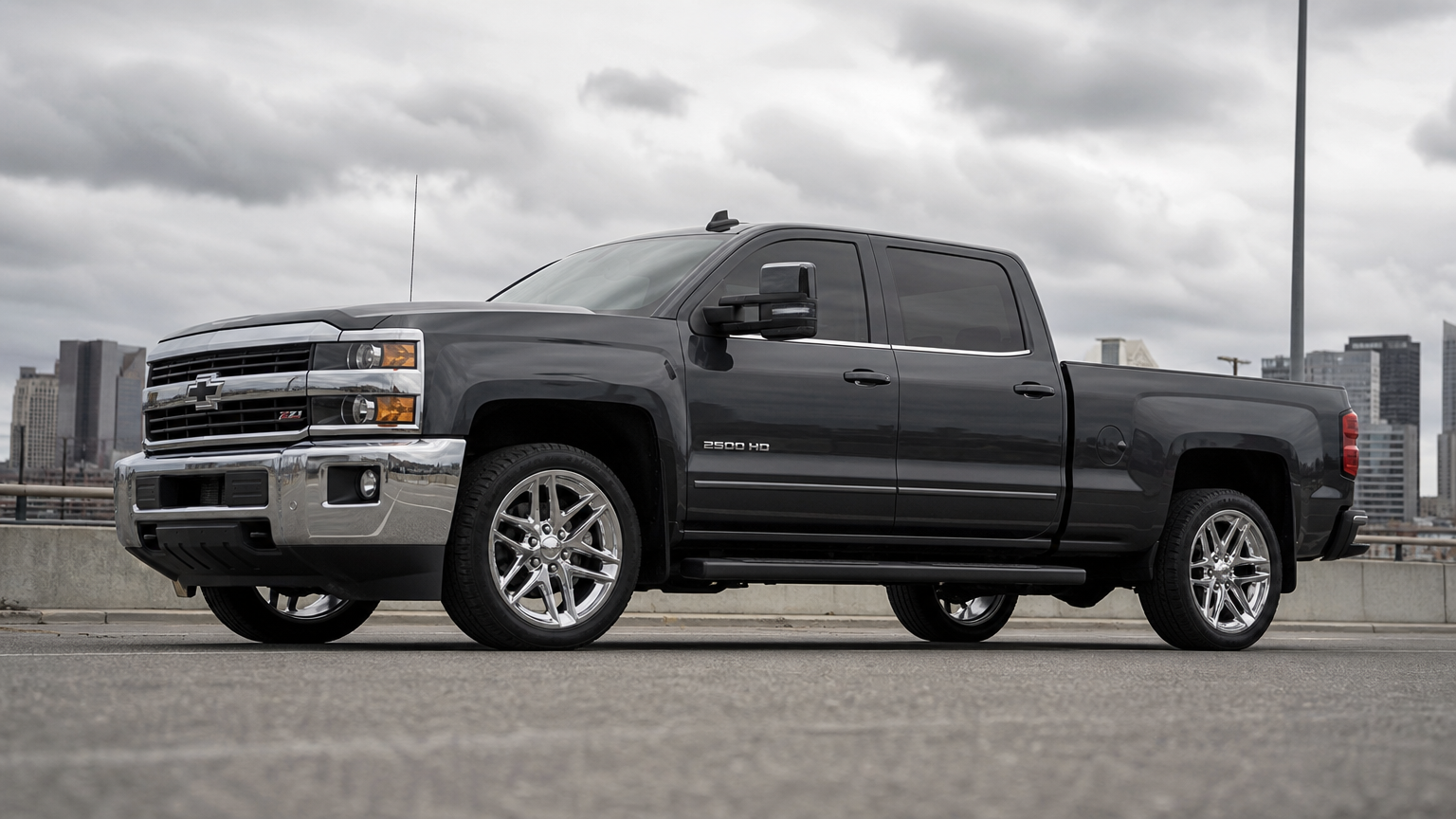

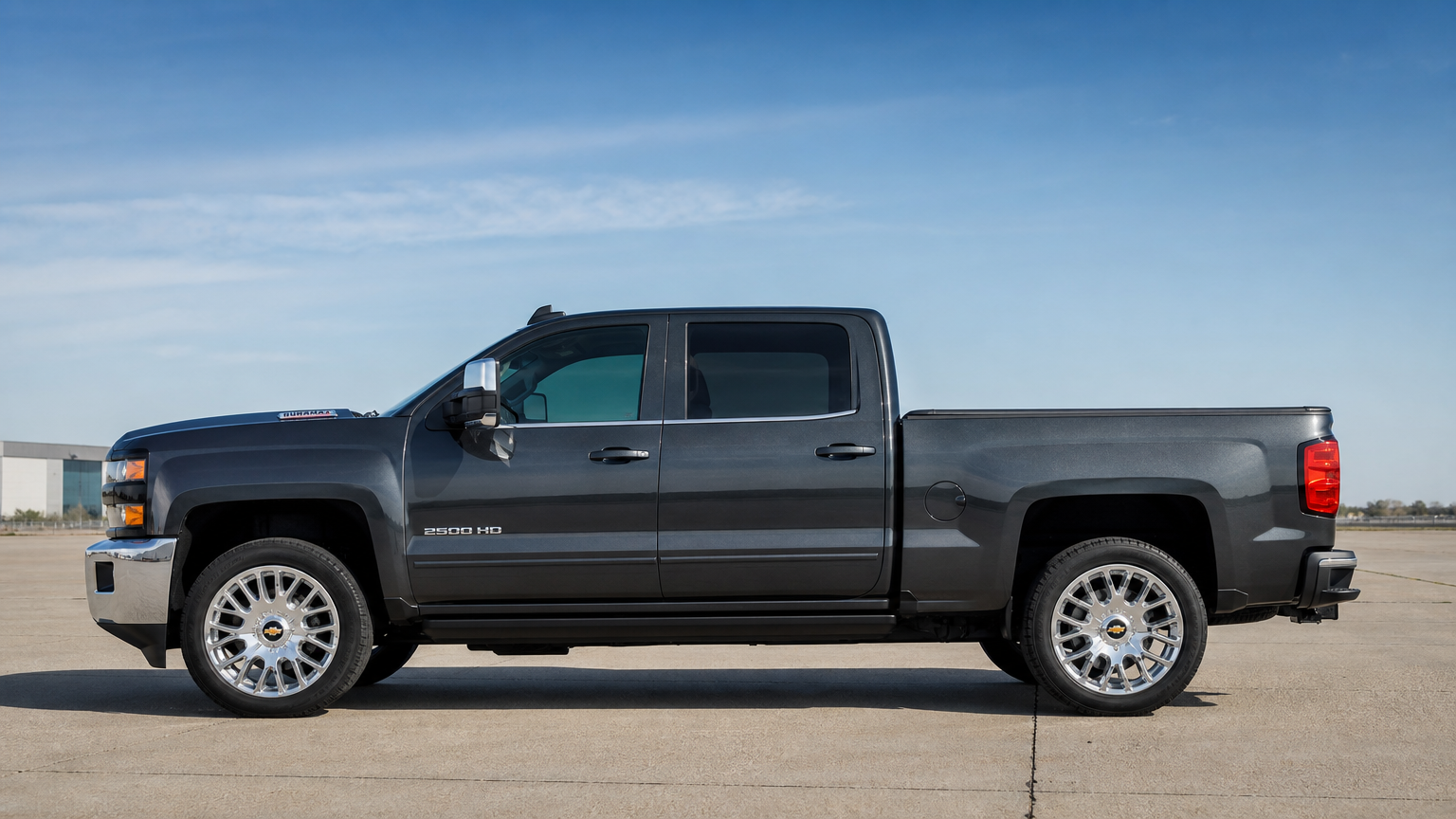

2019 Silverado 2500 LML Duramax street build Houston Drop Forged Diesel

Home/ Gallery/ Silverado Duramax Street

Build Showcase · Houston, TX

2019 SILVERADO
2500 LML
DURAMAX
STREET BUILD

Q: Does the Allison 1000 need a rebuild at Stage 2 Duramax output?

No. The Allison 1000 handles Stage 2 power levels (460-500 rwhp) without a full rebuild. It requires a TCM recalibration via EFI Live to match the increased torque output — shift pressure, line pressure, and converter lockup schedule all need adjustment. Running Stage 2 against a stock Allison calibration causes harshness and accelerated clutch wear.

Vehicle

2019 Silverado 2500

Engine

6.6L LML Duramax

Purpose

Street Performance

Output

480 RWHP

Torque

860 LB-FT

Build Story

THE DURAMAX
STREET FORMULA.

This 2019 Silverado 2500 LML came in completely stock — factory tune, factory exhaust, no lift pump, no intake. The owner uses the truck daily and pulls a boat on weekends. He wasn't chasing a big number; he wanted the truck to feel like it belonged in a different class — stronger pull off idle, better throttle response, and that characteristic LML exhaust note when you get into it.

The LML Duramax is one of the strongest starting points in diesel performance. It came from the factory with 397 HP and 765 lb-ft and a factory CP4 injection pump — on this platform, the lift pump and fuel system hardening come first, not because of a towing requirement, but because the CP4 failure risk on the LML is real and a Stage 2 tune increases fuel demand at the injection pump. The FASS 150 addresses that before the tune goes in.

The Stage 2 package on this truck was EFI Live tune, S&B cold air intake, 3-inch downpipe, and cat-back exhaust. The Allison 1000 received a transmission calibration alongside the engine tune — shift pressure, line pressure under load, and converter lockup were all adjusted to match the increased torque output. The Allison is one of the best transmission platforms in the HD segment and doesn't need a rebuild at Stage 2, but the stock calibration doesn't match well with the increased torque curve EFI Live produces.

The result: 480 rwhp and 860 lb-ft — a truck that still drives like stock at light throttle and pulls hard from 1,500 rpm. See the full Duramax build page for where this fits in the platform build path and the engine tuning page for how EFI Live compares to HP Tuners for each Duramax generation.

Why EFI Live on LML, Not HP Tuners

The LML Duramax (2011–2016) is an EFI Live platform. HP Tuners gained access to the L5P (2017+) but not the LML. For this truck, EFI Live is the calibration platform — it provides full ECM and TCM access on the LML, including fuel tables, injection timing, and Allison TCM parameters. If you're building a 2017+ Silverado with the L5P, HP Tuners is the path. Platform determines the tool, not preference.

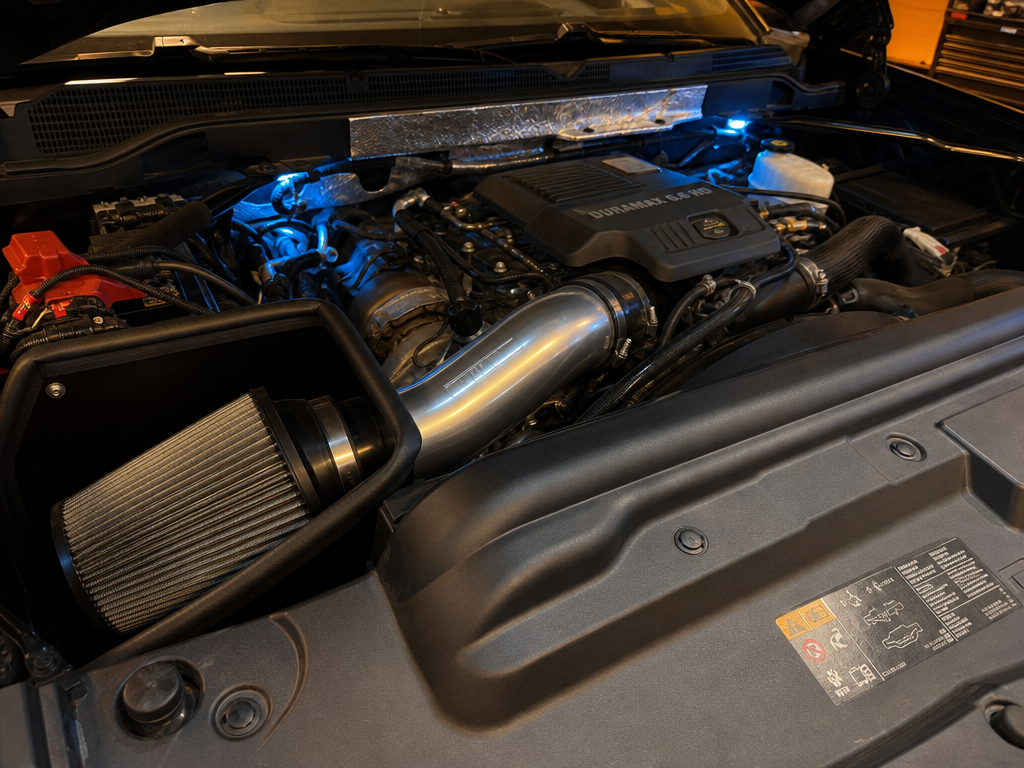

2019 Silverado 2500 LML Duramax S&B cold air intake installed

Build Context

This is what a clean Stage 2 street Duramax looks like — no compound turbo, no big injectors, no trans rebuild. A lift pump to protect the fuel system, supporting intake and exhaust to let the engine breathe, and a purpose-built EFI Live tune with matching Allison calibration. Three weeks from intake to delivery.

Full Build Sheet

Every Component on This Build

Complete parts list — what was installed, what was upgraded, and what carried over from stock.

FUEL SYSTEM

Lift PumpFASS 150 Titanium Series — frame-mounted
Injection PumpFactory CP4 — retained with FASS protection
InjectorsFactory injectors — within Stage 2 fuel demand range
Water SeparatorFASS integrated — pre-filter + separator
Fuel LinesFASS supply lines — tank to lift pump to CP4

INTAKE & EXHAUST

IntakeS&B cold air intake — high-flow panel filter, sealed airbox
Downpipe3" mandrel-bent downpipe — DPF-back
Cat-BackMBRP 4" single exit cat-back — stainless, aggressive note
DPF / EGRRetained — emissions-legal build
IntercoolerFactory retained — Stage 2 within factory IC capacity

TRANSMISSION

PlatformAllison 1000 — TCM recalibrated via EFI Live
Clutch PackFactory retained — Stage 2 within Allison rating
Shift PressureCalibrated via TCM tune — firm, matched to torque curve
ConverterFactory retained — recalibrated lockup schedule
Trans FluidDexron VI — full flush at tune completion

CALIBRATION

PlatformEFI Live — DSP5 switch, 3 calibration profiles
Street TuneStage 2 daily profile — fuel economy + response balance
Tow TuneBoat/trailer profile — EGT management, conservative ceiling
Regen ProfileDPF regen cycle optimized — no regen inhibit
VerifiedChassis dyno — 480 rwhp / 860 lb-ft confirmed

Verified Results

Dyno-Verified Output — Street Tune Profile

All figures from chassis dyno on the street drive profile. Tow tune runs slightly less peak output with a more aggressive EGT ceiling.

Wheel Horsepower 480 rwhp on street tune · up from 355 stock

Wheel Torque 860 lb-ft on street tune · up from 680 stock

Tune Profiles 3 Street · Tow · Economy — DSP5 switchable

Build Time 3 WK Parts, install, tune, dyno validation

LML Duramax Stage Map

Where Stage 2 Sits on the LML Build Path

This build is Stage 2. Here is how that fits the full LML progression and what each stage requires.

Stage 1 — Tune Only

FASS 150 lift pump first, then EFI Live tune. On the LML, we do not tune without a lift pump in place — the CP4 risk is real. Stage 1 is a tune on a protected fuel system with intake and exhaust optional. Realistic: 420–440 rwhp / 740–780 lb-ft.

420–440 rwhp

This Build

Stage 2 — Intake, Exhaust + Tune

FASS lift pump, S&B intake, 3" downpipe, cat-back, EFI Live Stage 2 tune, Allison TCM recalibration. The most popular Duramax build path — meaningful power increase with no compound turbo, no injector swap, no trans rebuild. Allison handles it.

460–500 rwhp

Stage 3 — Injectors + Compound

Stage 3 adds upgraded injectors and a compound turbo configuration. The Allison 1000 needs a full build above 600 rwhp to survive the added torque. This is where the build cost and complexity increases significantly. Realistic: 650–800+ rwhp.

650–800+ rwhp

Build Photos

In-Process & Finished

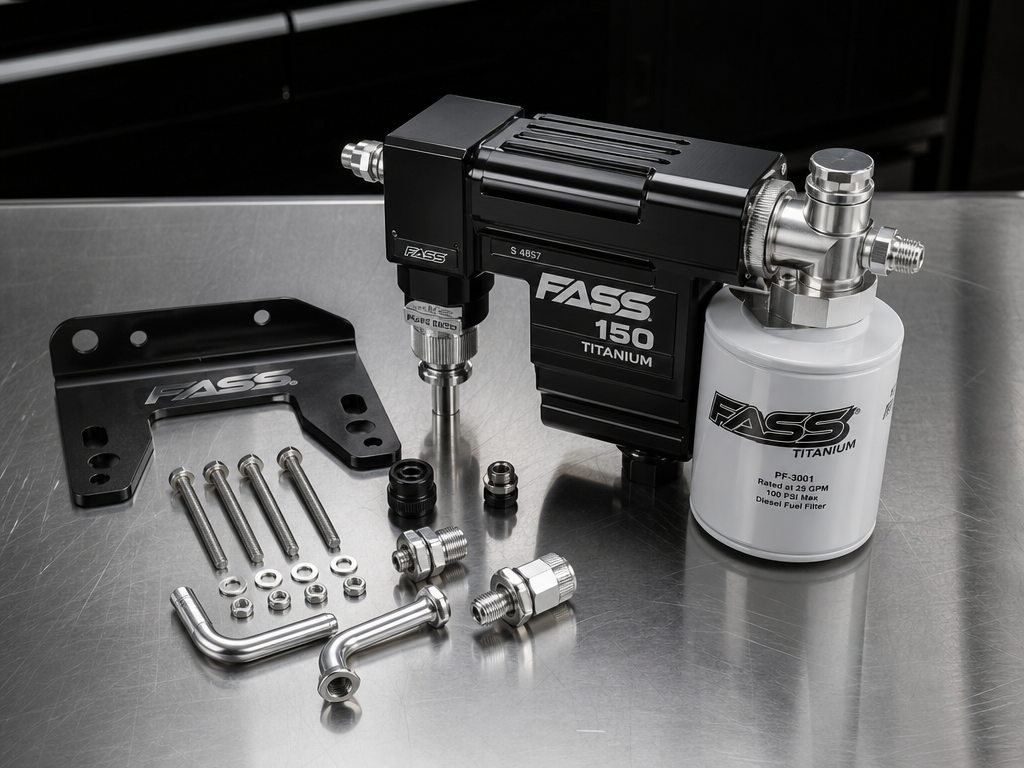

FASS 150 lift pump installed Silverado 2500 LML Duramax frame mount

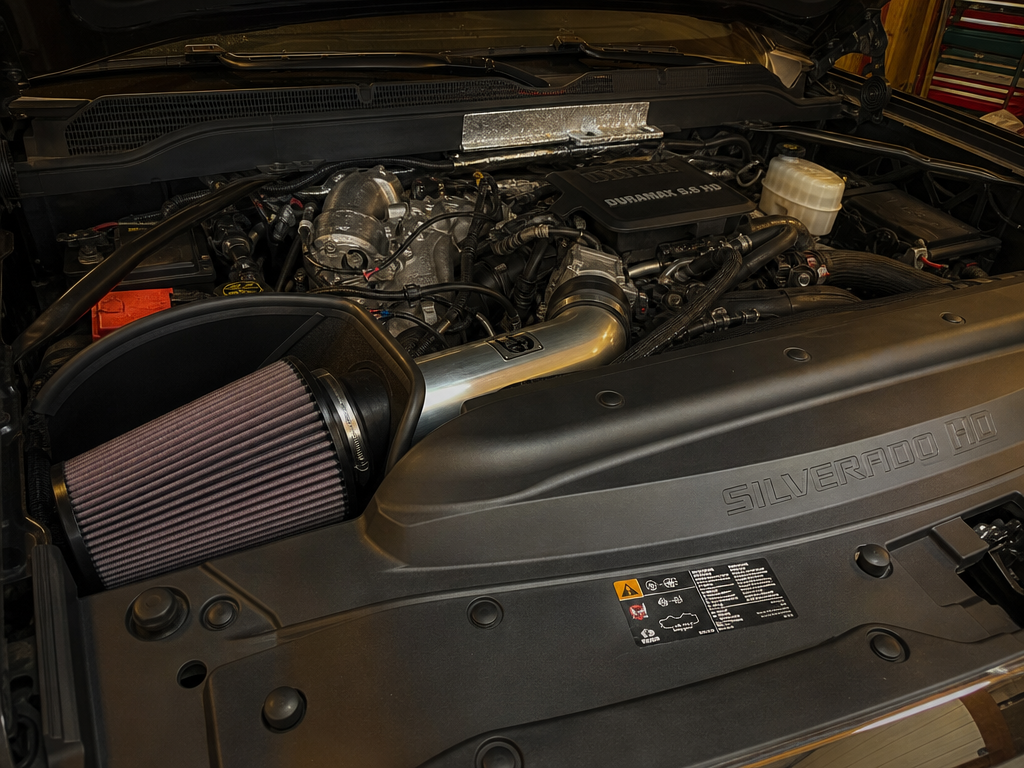

Silverado 2500 LML Duramax S&B intake installed engine bay

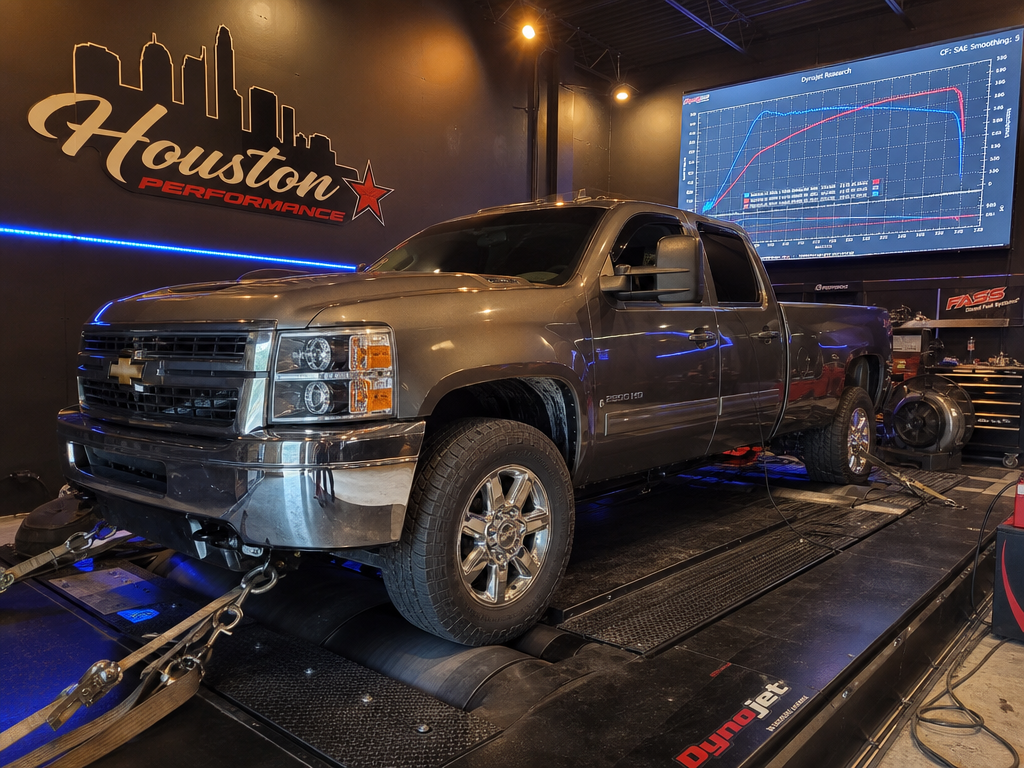

Silverado 2500 LML Duramax street build on chassis dyno Houston

Build Questions

About This Build

Questions we heard on this specific build and the answers behind them.

Why does the LML need a lift pump if it's not going to Stage 3 power?+

The LML Duramax runs a CP4.2 high-pressure injection pump from the factory. CP4 failures — caused by aeration and inadequate inlet pressure — are catastrophic and can send metal debris through the entire injection system. A Stage 2 tune increases fuel demand at the CP4 inlet. Without a lift pump maintaining consistent positive inlet pressure, you're tuning a vulnerable system and making it work harder. The FASS 150 addresses that before the tune goes in. The cost of the lift pump is a fraction of the cost of a CP4 failure and injection system replacement.

Does the Allison 1000 need a rebuild at Stage 2 Duramax power?+

No — the Allison 1000 is rated from the factory for the full torque output of the Duramax and has significant headroom above that. At Stage 2 (460–500 rwhp, 840–880 lb-ft), the Allison does not require a full rebuild. What it does require is a TCM recalibration to match the increased torque output — shift pressure, line pressure, and converter lockup schedule all need to be adjusted. Running a Stage 2 tune against a stock Allison calibration is how you get harshness and accelerated clutch wear. We calibrate the TCM at the same time as the engine tune.

What is the EFI Live DSP5 switch and how does the driver use it?+

EFI Live stores up to five calibration profiles in the ECM and TCM simultaneously. The DSP5 switch is a 5-position rotary dial mounted in the cab — the driver turns it to switch between profiles without a laptop or app. This truck uses position 1 for daily street driving, position 2 for towing the boat, and position 3 for an economy profile on highway runs. The ECM and TCM both load the selected profile. The switch costs less than $150 and is one of the most practical features on an EFI Live build.

Is Stage 2 enough for someone who tows a boat occasionally?+

Yes, with the right tow calibration. A Stage 2 LML producing 460–500 rwhp and 840–880 lb-ft has more than enough output for a boat trailer. The key is the tow profile — it runs a more conservative EGT ceiling and a smoother converter lockup strategy than the street profile. That's what makes the truck better to tow with, not just more powerful. The same fuel system that protects the CP4 on the street tune also provides the fuel security needed for long towing pulls. See the towing performance package for dedicated tow build details and the fuel system page for FASS lift pump details.
