It carries the Cummins name. It's not the Ram build platform. Here's an honest look at what the Titan XD diesel can and can't do — and what we can actually build on it.
THE CUMMINS BADGE
DOESN'T MAKE IT
A RAM BUILD.
The Nissan Titan XD 5.0L Cummins V8 turbodiesel is a capable worktruck in its own right — but it's frequently misunderstood by owners who assume that a Cummins engine means access to the same performance aftermarket as a Ram 2500 or 3500. It doesn't.
The 5.0L Cummins used in the Titan XD (2016–2019) is a purpose-built engine for the Nissan application — a V8 diesel, not the inline-6 used in Ram trucks. The injection system, turbocharger, and ECM architecture are different. The performance aftermarket is a fraction of what exists for the 5.9 or 6.7 Cummins.
That honesty matters. If you own a Titan XD diesel and want to know what's achievable, we'll tell you — and we can perform an ECM tune and exhaust upgrade to improve what the platform does well. If you're evaluating platforms and want to understand the difference versus a Ram 2500/3500 Cummins, that comparison is worth having at the consultation.
- 310 hp / 555 lb-ft stock — strong for a half-ton-plus segment
- 12,710 lb conventional tow rating when properly configured
- Smooth V8 diesel power delivery — refined on-road manners
- Better fuel economy than comparable gas V8
- Genuine Cummins quality and reliability track record
- Ram/Cummins aftermarket ecosystem — different engine entirely
- CP3 injection pump conversion path — not applicable
- Compound turbo upgrades — limited to OEM-adjacent options
- High-output performance builds — ceiling is low
- HD-tier towing capacity (no 20,000+ lb gooseneck path)
Titan XD 5.0L Cummins V8 — Stock Baseline
The 5.0L V8 turbodiesel was available in the Nissan Titan XD from 2016 through 2019. Nissan discontinued the diesel option after the 2019 model year.

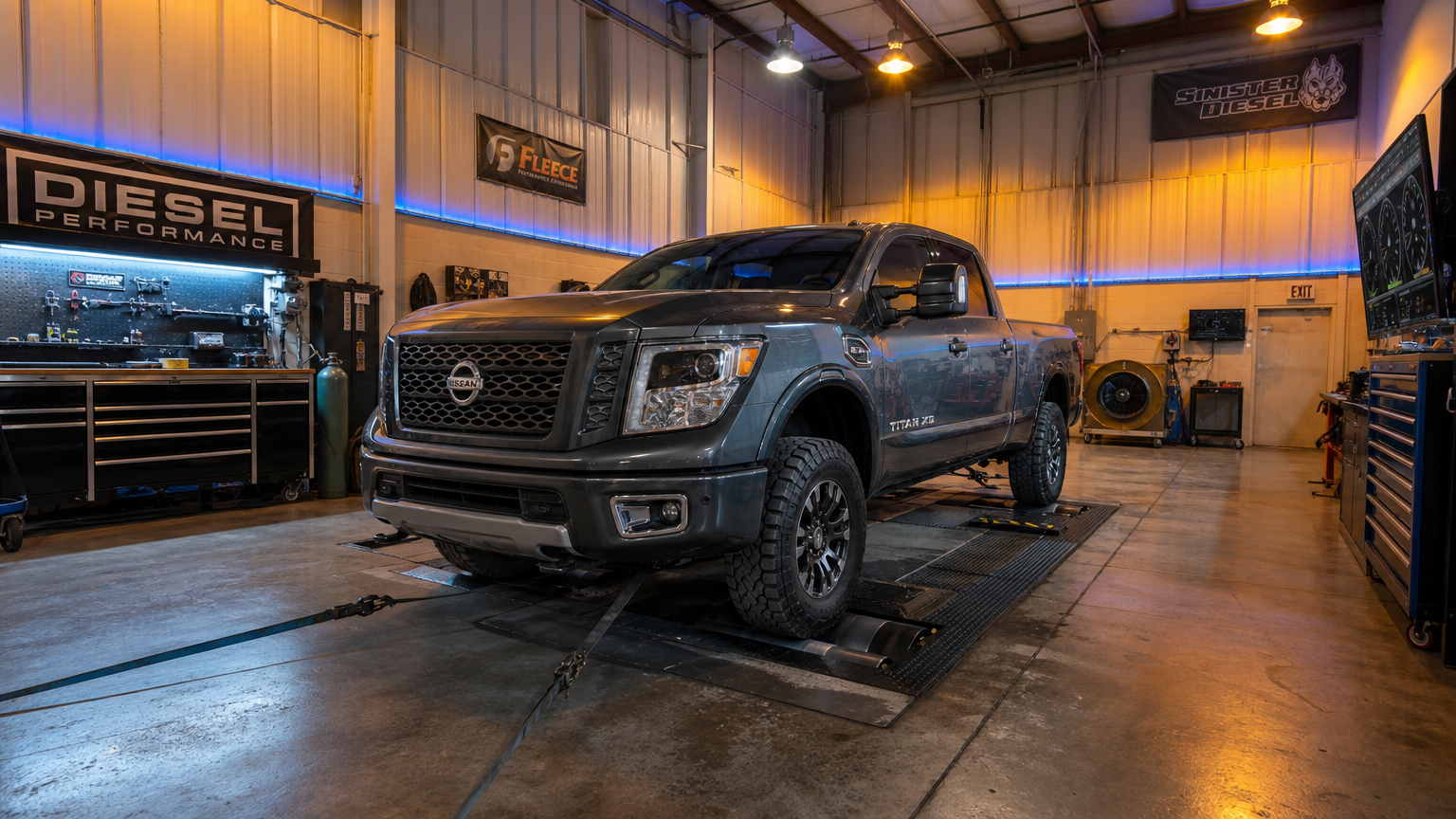

What We Build on the Titan XD Diesel
The build window on the Titan XD is narrower than the HD diesel platforms. Within that window, a tune and exhaust produce a meaningfully better truck for daily driving and towing.
ECM access on the Titan XD 5.0L Cummins is supported through HP Tuners on certain model years. A calibration improves throttle response, low-RPM torque delivery for towing load, and can reduce DPF regen frequency under normal driving cycles.
Expect 25–40 additional lb-ft and improved throttle response. The performance ceiling is lower than any of the HD platforms. See the ECM tuning page for how we approach calibration.
Aftermarket cat-back exhaust options exist for the Titan XD diesel. An exhaust upgrade improves exhaust note, reduces back pressure under tow load, and marginally reduces EGT under sustained grades.
We don't perform DPF or emissions deletes on any platform. All exhaust work on the Titan XD is emissions-legal cat-back configuration. See the exhaust systems page for the full approach.
The Titan XD 5.0L uses a common-rail injection system. Fuel filter maintenance, supply line inspection, and fuel quality attention are relevant for any Titan XD diesel — especially trucks operating in summer ethanol-blend fuel conditions in Texas.
The Titan XD does not have access to the FASS / AirDog lift pump aftermarket that the HD Cummins platforms use. Fuel system work here is maintenance-focused. See the fuel system page for context.

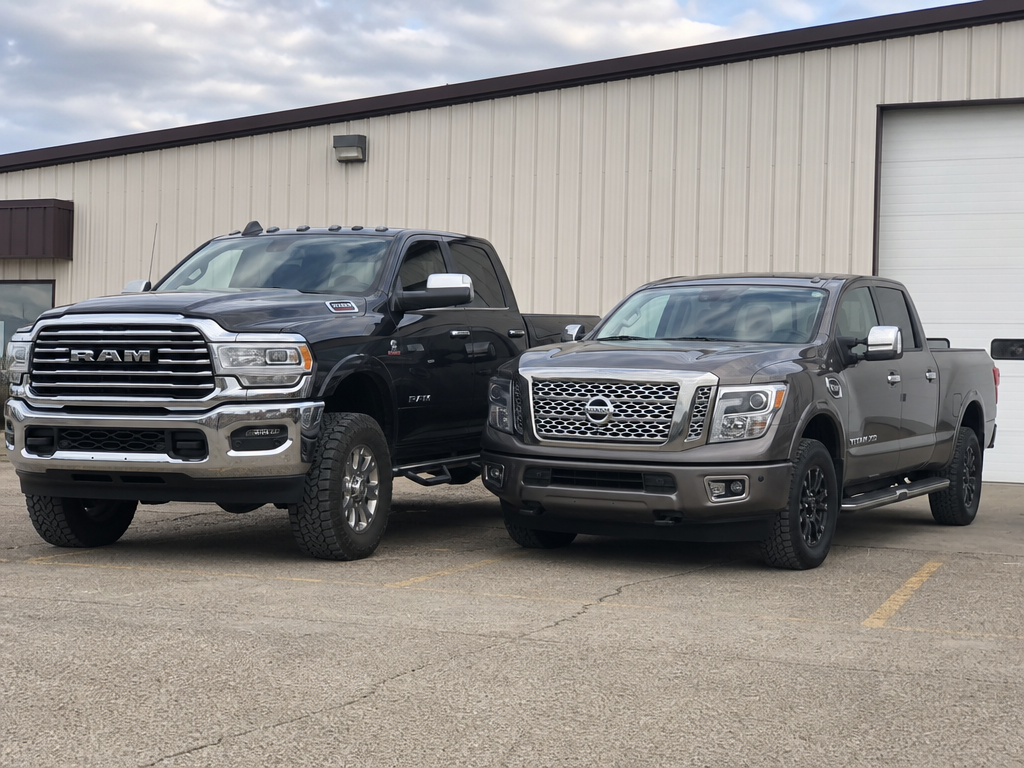

TITAN XD VS.
RAM CUMMINS —
THE REAL DIFFERENCE.
Both trucks have a Cummins engine. The comparison stops there. The 6.7 inline-6 in the Ram 2500/3500 has a deep performance aftermarket developed over three decades. CP3 conversions, S400 compound turbos, built transmissions, and EFI Live Stage 3 calibrations are proven, available, and regularly executed.
The Titan XD 5.0L V8 Cummins has been in production for four years and was discontinued. The aftermarket exists, but it's thin — a fraction of what's available for the inline-6 Ram application. If high-output performance or commercial towing is the goal, the Ram 2500/3500 Cummins is the correct starting platform.
If you own a Titan XD and want to maximize what you have, we'll do that. If you're choosing between platforms, the Ram 2500/3500 Cummins page covers what that build path looks like from Stage 1 through compound builds.
Nissan Titan XD Cummins Questions
Straightforward answers about the Titan XD 5.0L diesel.
OWN A TITAN XD DIESEL?
LET'S TALK HONESTLY.
We'll tell you exactly what the platform can do, what it can't, and what a build looks like from there. No upsell — just a straight conversation.
