Drop Forged Diesel  ·  Houston, TX

DIESEL INTERCOOLER
UPGRADES
HOUSTON

High-flow FMIC and TMIC intercooler upgrades for Cummins, Power Stroke, and Duramax diesel trucks. Mandatory on compound turbo builds — and paired with a tune revision after every install.

Book Your Consultation → See Turbo Options
FMIC — Front Mount TMIC — Top Mount Compound Turbo Standard Tune Revision Included
IAT
Intake Air Temp — Reduced
3"
Standard Charge Pipe Diameter
100%
Compound Builds Get FMIC
100%
Tune Revision After Install
Why Intercooler Upgrades Matter on Diesel Builds

Hot Charge Air
Costs You Power
and Engine Safety.

The intercooler's job is to cool compressed air from the turbo before it enters the engine. Cooler air is denser — more oxygen per charge, more combustion efficiency, and lower exhaust gas temperatures under load. The stock intercooler on most diesel trucks is sized for factory power levels. Under a compound turbo setup with elevated boost pressure, it becomes the thermal limit in the intake system — heat soak under hard towing or sustained high load causes inlet air temperatures to climb, which forces the tune to pull fueling to protect the engine.

An upgraded front-mount intercooler eliminates that thermal limit. The compound turbo setup the intercooler feeds is spec'd with the intercooler in mind — core size, pipe routing, and pressure drop are all part of the same conversation. Exhaust alongside the intercooler work is a common pairing on performance builds since both affect EGT and charge efficiency.

After the intercooler install, the EFI Live calibration is revised to take advantage of the lower inlet air temperatures — the tune doesn't just work with the new intercooler, it's written around it.

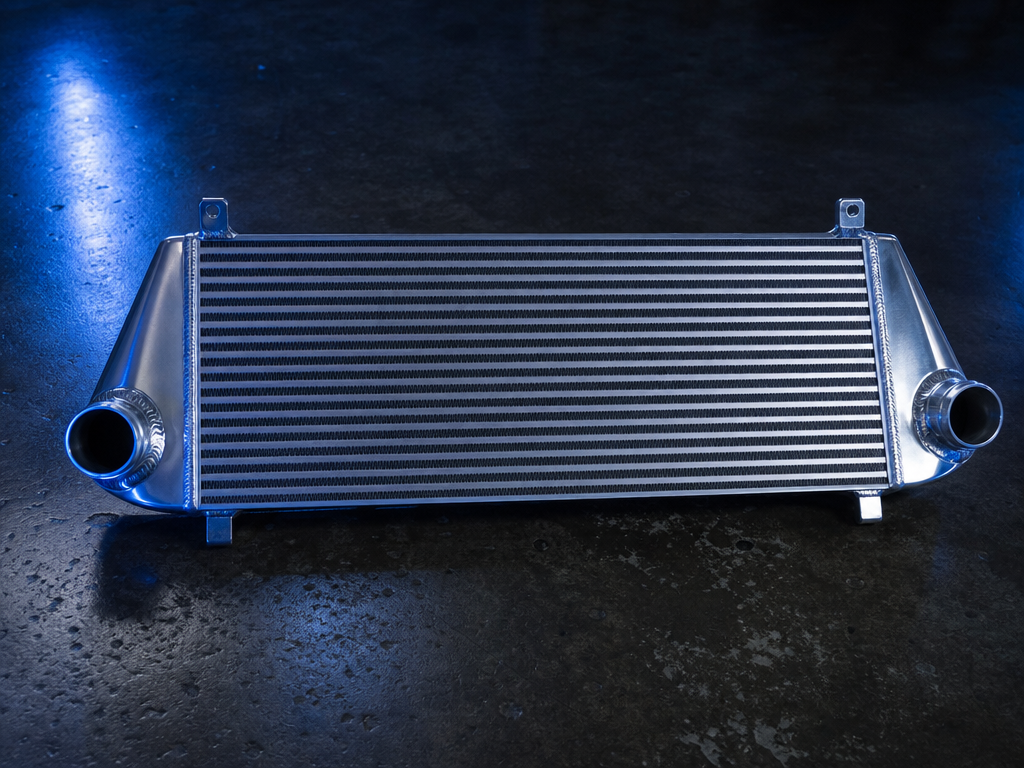

Aftermarket diesel FMIC intercooler
FMIC vs. TMIC — Which Configuration Is Right

Front Mount vs. Top Mount —
Platform Determines the Answer.

The right intercooler configuration depends on the platform and the build. Most diesel HD trucks run front-mount configurations from the factory or benefit from FMIC upgrades. Some platforms use top-mount configurations. We spec the right core size and routing for your build at the consultation.

Standard on Compound Builds
FMIC
Front-Mount Intercooler

The front-mount intercooler is the standard configuration for performance diesel builds. Larger core area, direct airflow from vehicle motion, and no heat soak from engine bay proximity. On compound turbo builds, the FMIC is a mandatory upgrade — the factory intercooler can't handle the compressed air volume from a secondary turbo without exceeding safe inlet temperatures under sustained load. Charge pipe routing runs from the turbo outlet, through the FMIC core, and to the intake manifold. 3-inch mandrel-bent aluminum or stainless pipe.

  • Larger core area — higher airflow capacity
  • Benefits from vehicle motion airflow
  • Required on all compound turbo builds
  • 3" aluminum or stainless charge pipes
  • Tune revision after install
Platform-Specific
TMIC
Top-Mount Intercooler

Some platforms run top-mount intercooler configurations from the factory — the Duramax LBZ and LML use a TMIC over the engine. Aftermarket top-mount upgrades are available and provide improved flow over the stock core without requiring charge pipe re-routing. The trade-off is heat soak potential from engine bay proximity under slow-speed or stationary high-load conditions. For towing builds that run sustained highway loads, a TMIC upgrade addresses the capacity limit without the installation complexity of an FMIC conversion. High-power builds on these platforms typically convert to FMIC.

  • Upgraded core — better flow than stock
  • Uses factory charge pipe routing
  • Right for moderate power towing builds
  • High-power builds convert to FMIC
  • Tune revision after install
When the Intercooler Upgrade Is Right

Build Triggers That Put the
Intercooler On the List.

Compound Turbo
Any compound turbo setup — S300, S400, or big single — requires an FMIC upgrade. The compressed air volume from a secondary turbo exceeds what the factory intercooler can handle without heat soak. This is non-negotiable on compound builds. The intercooler is spec'd at the same consultation as the compound turbo setup.
Stage 2+ Tune
At Stage 2 and above — elevated fueling, higher boost targets, upgraded injectors — the stock intercooler becomes a thermal limit. Inlet air temperatures rise under load and the tune pulls fueling to compensate. An FMIC upgrade eliminates that ceiling and lets the tune deliver consistent power under sustained load.
Hard Towing
Trucks that pull gooseneck trailers at highway speeds under Texas summer heat are exactly where intercooler heat soak shows up. A towing-focused build that runs elevated fueling and boost needs the intercooler capacity to back it up. An intercooler upgrade on a towing build is often paired with exhaust work for the EGT benefit.
IAT Monitoring
If you're already monitoring inlet air temperatures and seeing IAT rise under sustained load, the factory intercooler is at its limit. An upgraded FMIC addresses the problem directly rather than working around it with tune conservatism.
Platform Notes

Intercooler Upgrades
Across the Three
Diesel Platforms.

The Cummins intercooler upgrade on the Ram 2500 and 3500 is a front-mount conversion from the factory air-to-air FMIC location — aftermarket cores in the 24x12x4 range are the standard for compound turbo builds.

The Duramax LBZ and LML use a top-mount intercooler from the factory. Aftermarket TMIC upgrades are available; FMIC conversions are available for high-power builds. L5P Duramax runs a more capable stock intercooler system that holds up better at moderate power levels.

The Power Stroke intercooler upgrade on the 6.7 is an FMIC upgrade — the factory unit is undersized for compound turbo builds. The 6.4 Power Stroke has a different intercooler configuration with its own upgrade path, discussed at consultation.

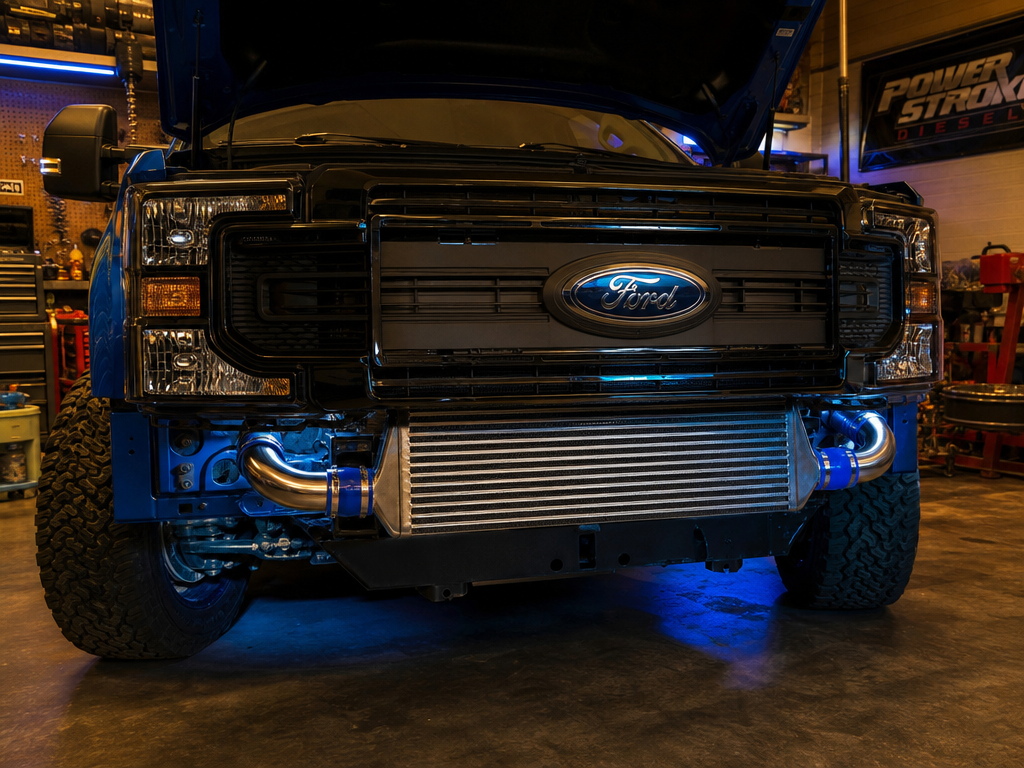

Diesel intercooler installed Houston
Common Questions

Diesel Intercooler Upgrade FAQ

What diesel truck owners ask before an intercooler install.

How much does an intercooler upgrade actually reduce inlet air temperature?+
On a stock truck under hard towing, intake air temperatures from the factory intercooler can reach 150–180°F in Texas summer conditions. An upgraded FMIC with proper core sizing and airflow can bring those temperatures down to 80–120°F under the same conditions. The actual numbers depend on ambient temperature, load, speed, and core sizing — we monitor IAT before and after to verify the improvement on your specific truck.
Does an intercooler upgrade require a tune revision?+
Yes. The tune's fueling and boost targets are calibrated with IAT sensor inputs as part of the safety logic. A lower IAT from the upgraded intercooler allows the tune to run more aggressively without the IAT-based fuel pull. A tune revision after the intercooler install captures that headroom — without it, the tune is still operating with the conservative parameters written for the stock intercooler's temperature range.
Can I run a compound turbo setup with the factory intercooler?+
No — not at full compound turbo boost levels. The factory intercooler is sized for the stock turbo's air volume. A compound setup with a secondary turbo roughly doubles the compressed air volume that the intercooler has to process. Under sustained load, the factory core heat-soaks and inlet temperatures climb to the point where the tune pulls fueling to prevent detonation. Compound turbo installs at our shop include FMIC specification at the same consultation.
What's the right intercooler core size for a diesel compound build?+
Core sizing depends on the power target and the airflow volume from the turbo configuration. A 24x12x4-inch FMIC core is a common starting point for S300 compound builds. S400 and big single configurations may warrant a larger core. Oversizing the intercooler creates excessive pressure drop, which slows response — bigger is not always better. We spec the right core for your power target at the build consultation, not a generic catalog recommendation.
Houston metro diesel performance service area
Service Area
Diesel Intercooler Upgrades — Houston Metro
Houston Katy Sugar Land Pearland The Woodlands Conroe Cypress League City Friendswood Pasadena Baytown Humble Spring Tomball Missouri City Richmond
FMIC · TMIC · Compound Turbo Standard

COOLER AIR.
MORE POWER.

Diesel intercooler upgrades in Houston for Cummins, Duramax, and Power Stroke trucks. Every compound turbo build gets an intercooler spec at the consultation. Every intercooler install gets a tune revision after. Book a consultation and we'll spec the right intercooler for your build.
