DIESEL TOWING
PERFORMANCE
HOUSTON
A towing package for a diesel truck is not just a tow tune. It's EGT management, transmission protection, fuel system headroom, and drivetrain assessment — all planned together at one consultation. We build it as a system because that's how it fails if you don't.
A Tow Tune Alone
Is Not a
Towing Package.
The most common mistake we see on trucks bought for towing: a single-switch tow tune that adds fuel and boost under load with no consideration for where the EGTs go, what the transmission is doing with the additional torque, or whether the fuel system can maintain injection pressure during a sustained climb at high load.
A tow tune from EFI Live tow calibration is the right foundation — it controls fueling more precisely under load, improves throttle response for trailer stability maneuvers, and optimizes torque delivery in the tow operating range. But that tune generates more heat and more drivetrain stress than the stock calibration. The transmission is the first component stressed under tow load — torque converter lock-up, clutch pack temperature, and fluid life all decline faster under a modified tune without a transmission that's been spec'd for it.

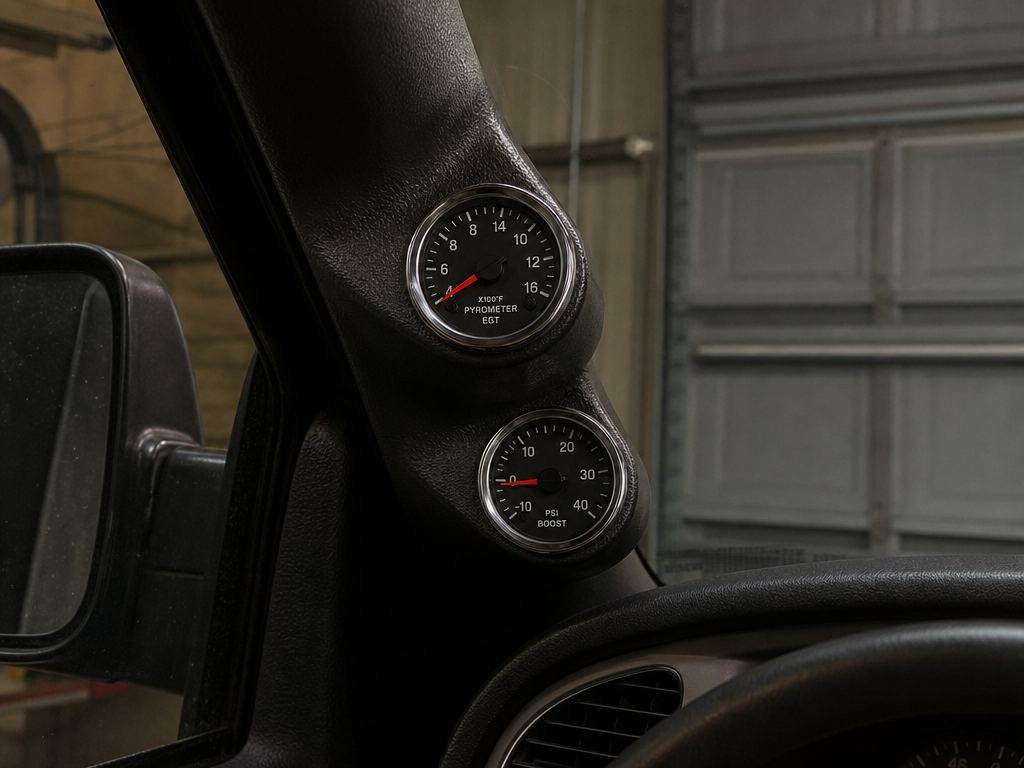

EGT (exhaust gas temperature) monitoring is mandatory on any modified diesel being used for hard towing. The stock EGT display on most HD diesels is either absent or positioned where it's easy to ignore. We install dedicated EGT monitoring — typically an Edge Insight or Pyrometer gauge stack — before a modified tune goes in. The 1,400°F limit under sustained tow load is the number. Above that, turbine wheel and exhaust valve life degrade fast.
Stage by Stage —
Built for the Load.
Towing packages are scoped to the load and the truck's current state. Light towing on a stock truck needs a different build path than a fifth-wheel hauler doing 30,000 lb loads on Texas highways. We start with what the truck actually tows and build from there.
The foundation package for trucks that tow regularly but at light to moderate loads (10,000–20,000 lbs). Tow tune, EGT monitoring, and transmission fluid service. Addresses the most common failure modes on a stock diesel under tow use: overheated transmission fluid and unmonitored EGTs.
- EFI Live tow calibration — 1–2 power levels
- EGT gauge / pyrometer install
- Transmission fluid service + filter
- Fuel system inspection and fluid change
- Pre-tow drivetrain assessment

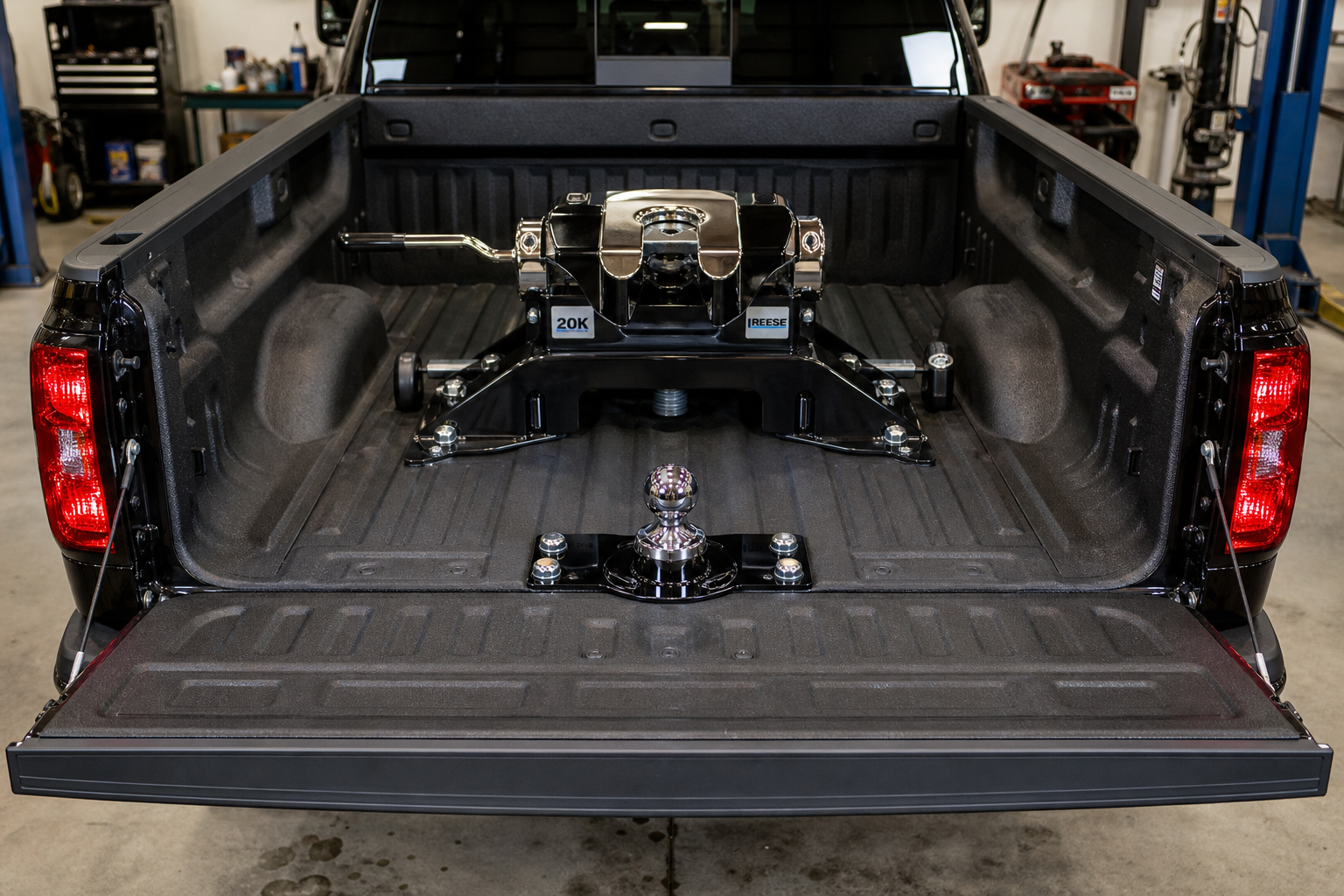

The build path for trucks pulling 20,000–35,000 lb loads on a regular basis. All of Tow Ready plus lift pump installation to maintain injection pressure under sustained load, transmission torque converter upgrade, and exhaust work for EGT headroom under sustained tow load. This is the package for fifth-wheel haulers, gooseneck cattle and equipment trailers, and truck camper configurations.
- EFI Live tow calibration — 2–3 power levels
- EGT + boost monitoring stack
- FASS or AirDog lift pump
- Torque converter upgrade (68RFE / 6R140 / Allison)
- Exhaust upgrade — 4" downpipe-back
- Differential assessment and fluid service
Maximum-load commercial towing, heavy equipment hauling, or trucks that tow at or near rated capacity in high-ambient Texas summer conditions. This builds on Tow Built with intercooler upgrade for charge air temp management under sustained load, full transmission rebuild to Stage 2, and re-gear for towing efficiency at the target tire size. Cooling system assessment and radiator upgrade if indicated.
- EFI Live high-output tow calibration
- Intercooler upgrade — charge air management
- Full transmission Stage 2 build
- Differential re-gear — 4.10 or 4.56
- Cooling system assessment
- Full EGT / boost / trans-temp monitoring
1,400°F Is the
Hard Limit.
Plan Around It.

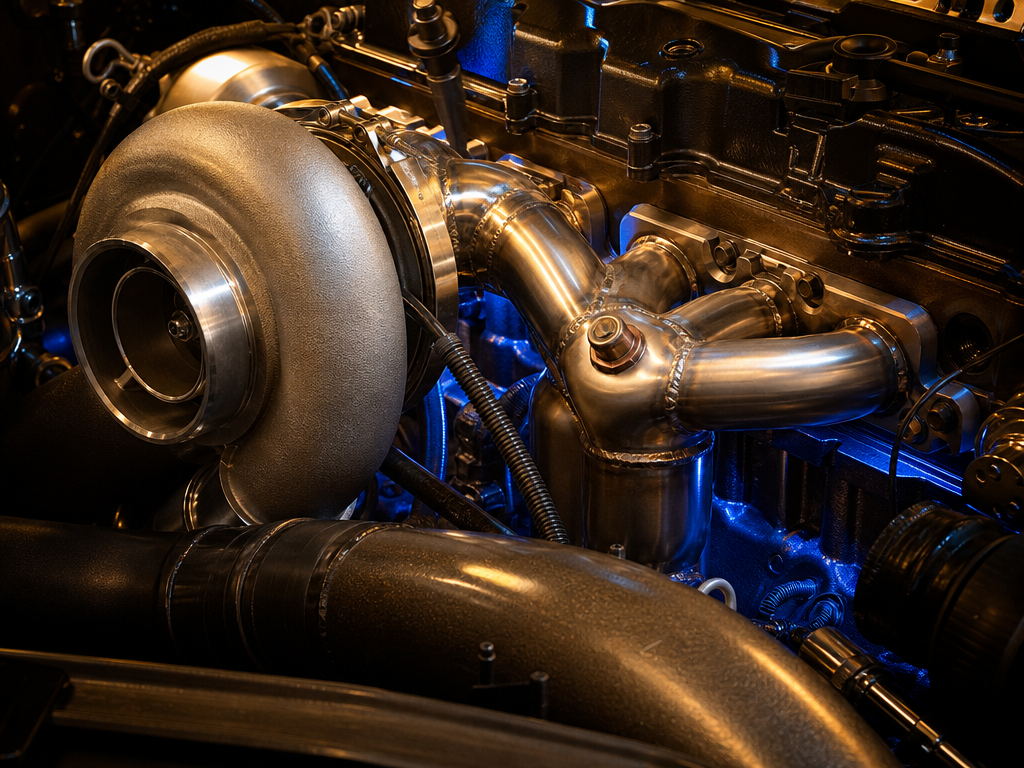

Exhaust gas temperature is the single most important data point on a modified diesel being used for towing. EGT tracks directly with the fuel load being introduced relative to airflow — which means it rises fast under sustained hill climb or headwind at highway speed with a heavy trailer behind.
The stock EGT threshold on most HD diesels with emissions equipment is managed by the ECM through active regen and fuel cut strategies. A modified tune changes those strategies. That's why the monitoring comes before the tune — and why the exhaust upgrade matters. A 4" exhaust system gives the EGT somewhere to go faster.
Diesel Towing Performance FAQ
Straight answers on diesel towing builds and EGT management.
BUILT TO TOW.
NOT JUST TUNED.
Diesel towing performance packages in Houston for Cummins, Duramax, and Power Stroke trucks. We build the full system — tune, EGT management, transmission, and fuel — at one consultation, in the right order. Book a consultation and we'll scope the right package for what you're pulling.
