DIESEL AXLE &
DIFFERENTIAL
UPGRADES
High-torque diesel builds eat stock ring-and-pinion sets, bearings, and limited-slips. We spec differential and axle upgrades for Cummins, Duramax, and Power Stroke trucks at the same consultation as the engine work — because the rear end is part of the build.
A High-Torque Tune
Is Hard on More
Than the Engine.
A Stage 2 or Stage 3 diesel tune can put 900–1,100 lb-ft of torque through a drivetrain that was engineered for 650–750 lb-ft in the factory configuration. The ring-and-pinion, carrier bearings, and limited-slip clutch packs in stock differentials tolerate that for a while — and then they don't. We've seen trucks come in with more than one failed rear end that traced directly to an engine build that outpaced the axle setup.
The differential upgrade conversation belongs at the same consultation as transmission work. The drivetrain is a system. The engine, the transmission, and the rear end are each rated for a torque ceiling — and the weakest link decides what breaks first. We plan it together.
If you've also done lift work that exposes stock CV and axle limits or installed larger tires that put additional stress on stock differentials, the re-gear and axle assessment becomes more urgent — both conditions change the load and angle the axle shaft is operating at.
Stock Axle Specs by
Platform — And Where They Break.
Each diesel platform ships with a different rear axle configuration. Understanding which axle is under the truck — and what its torque ceiling is — determines how the axle upgrade plan is written.

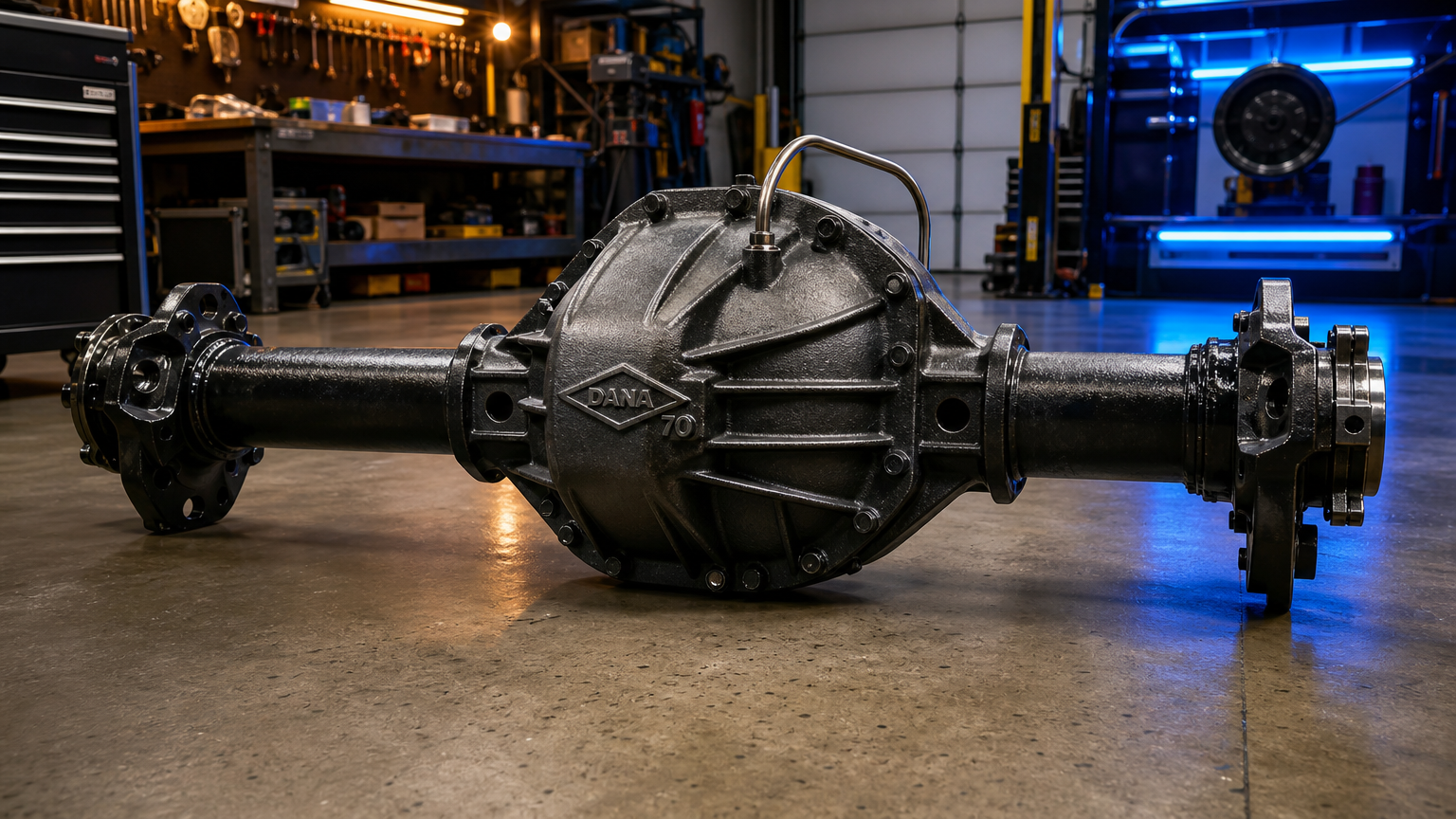

The Ram platform runs a Dana 60 front and either a Dana 70 or AAM 11.5 in the rear depending on year and cab/bed configuration. The AAM 11.5 (also called the 14-bolt equivalent for Ram) is the stronger unit and handles high-torque builds better than the Dana 70. High-fueling builds with aggressive tune files and towing use expose ring-and-pinion wear faster on Dana 70-equipped trucks. Full Cummins Ram build overview.
- Dana 70: common on older Ram builds — bearings + R&P are upgrade targets at Stage 2+
- AAM 11.5: stronger — gear upgrade still warranted at larger tire sizes

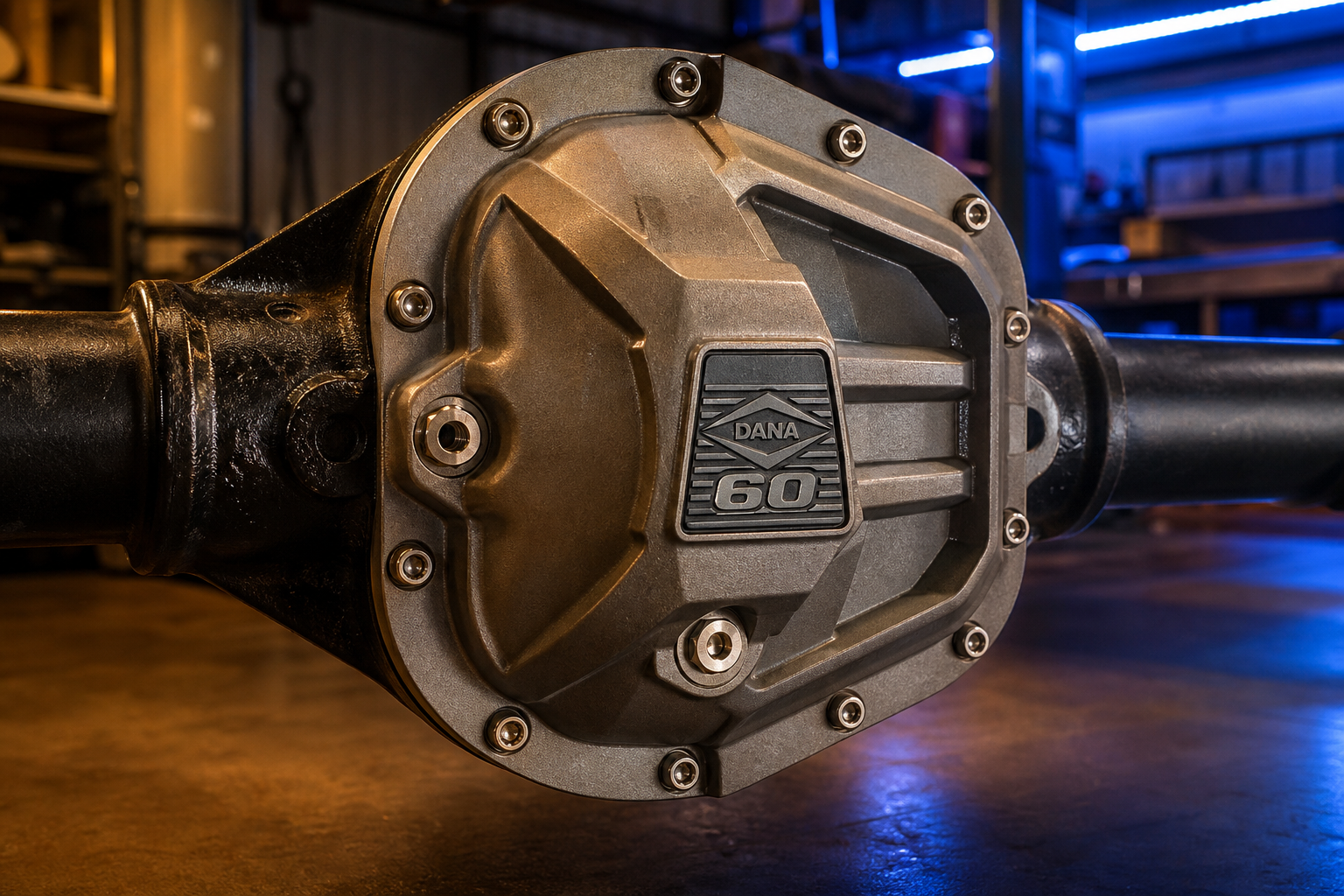

- Dana 60 front: CV upgrade at 4WD high-power builds
- Locker options: ARB Air Locker, Eaton E-Locker
The Super Duty runs a Dana 60 front axle and a Sterling 10.25 or 10.5 in the rear. The Sterling 10.5 is found on F-350 DRW (dually) trucks and is the stronger unit. High-torque 6.7 Power Stroke builds on the Sterling 10.25 benefit from upgraded ring-and-pinion and a carrier bearing refresh at Stage 2+. The Dana 60 front handles most diesel builds well but warrants inspection on lifted 4WD trucks with larger tires. Full Power Stroke build overview.
- Sterling 10.25: upgrade ring-and-pinion at Stage 2+ high-fueling builds
- Sterling 10.5 (F-350 DRW): stronger — bearings still assessed at 900+ lb-ft
- Dana 60 front: CV assessment on lifted 4WD builds
- Locker options: Eaton E-Locker, ARB Air Locker
The GM HD platform uses an AAM 9.25 independent front suspension (IFS) setup and an AAM 11.5 or the classic GM 14-bolt full-float rear axle. The 14-bolt rear is famously strong — it's one of the better stock axles in the light-HD diesel segment — but bearing wear and limited-slip clutch pack degradation still occur at sustained high-torque output on the Allison-backed L5P builds.
- 14-bolt rear: strong stock, but bearing refresh at high-power compound builds
- AAM 11.5: gear re-ratio at 37"+ tire sizes on lifted trucks
- AAM 9.25 front IFS: CV shaft upgrade on lifted builds
- Locker options: ARB Air Locker, Auburn ECTED
Gear Re-Ratio,
Bearing Service,
Full Locker Build.
Not every truck needs the same axle work. The power target, tire size, and towing use case determine which tier is appropriate. All axle work is scoped at the same consultation as engine and transmission work — before anything is ordered.
If you've gone to larger tires — anything above 35" on a stock gear ratio — the re-gear should happen regardless of power level. The stock 3.73 or 3.42 gearing on most HD diesel trucks was calibrated for factory tire diameter. A 37" tire on 3.42 gearing drops effective engine RPM at highway speed to a range that costs fuel economy and increases the load on the transmission torque converter.

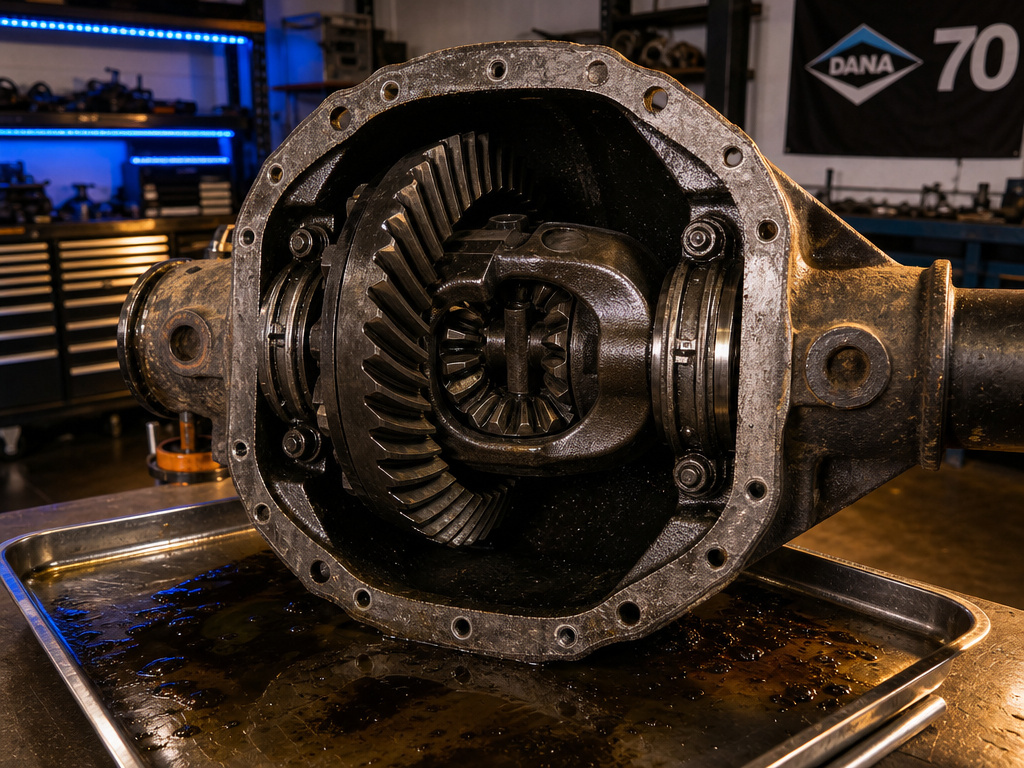

Carrier bearing replacement, pinion bearing replacement, axle seal refresh. This is the foundation service — done before a high-power tune on a truck with unknown maintenance history, or when wear is identified during lift or tire work. Differential fluid service and gear-mesh inspection included. Limited-slip clutch pack inspection and friction modifier change if equipped.

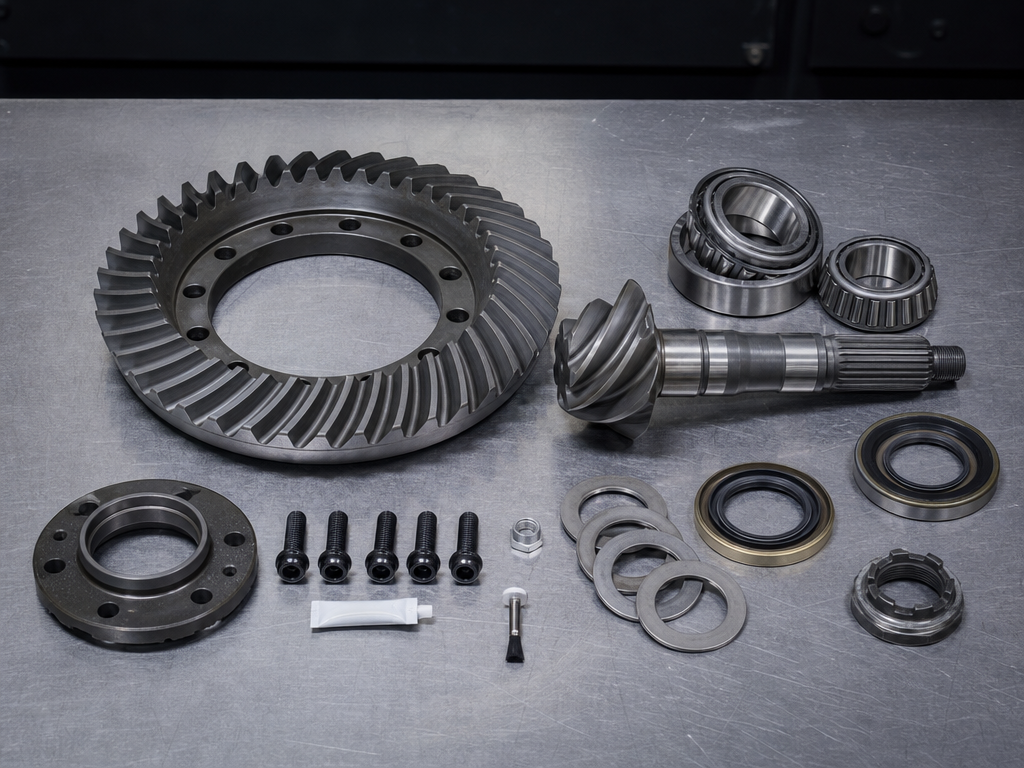

Ring-and-pinion swap to correct the gear ratio for tire size or towing use. Typical target ratios for 35"–37" tire builds: 4.10 or 4.56. Done front and rear simultaneously so the transfer case sees consistent ratios in 4WD. Includes full carrier setup, bearing replacement, and MLSS (Multi-Link Suspension System) alignment check on IFS platforms. Combined with Stage 2+ tune revision after install.
Mechanical or pneumatic locker installation (ARB Air Locker, Eaton E-Locker, Auburn ECTED) for trucks that require positive traction engagement. Sled pull prep trucks and off-road use cases benefit most here. Lockers are spec'd to the platform and use case — not all locker types fit all differentials or use patterns. Air locker installations require onboard air routing — we manage the full install.
Diesel Axle Upgrade FAQ
Straight answers on diesel differential and axle upgrades.
THE REAR END IS
PART OF THE BUILD.
Diesel axle and differential upgrades in Houston for Cummins, Duramax, and Power Stroke trucks. We spec the axle work at the same consultation as the engine and transmission — before anything breaks. Book a consultation and we'll scope the full drivetrain.
